Description

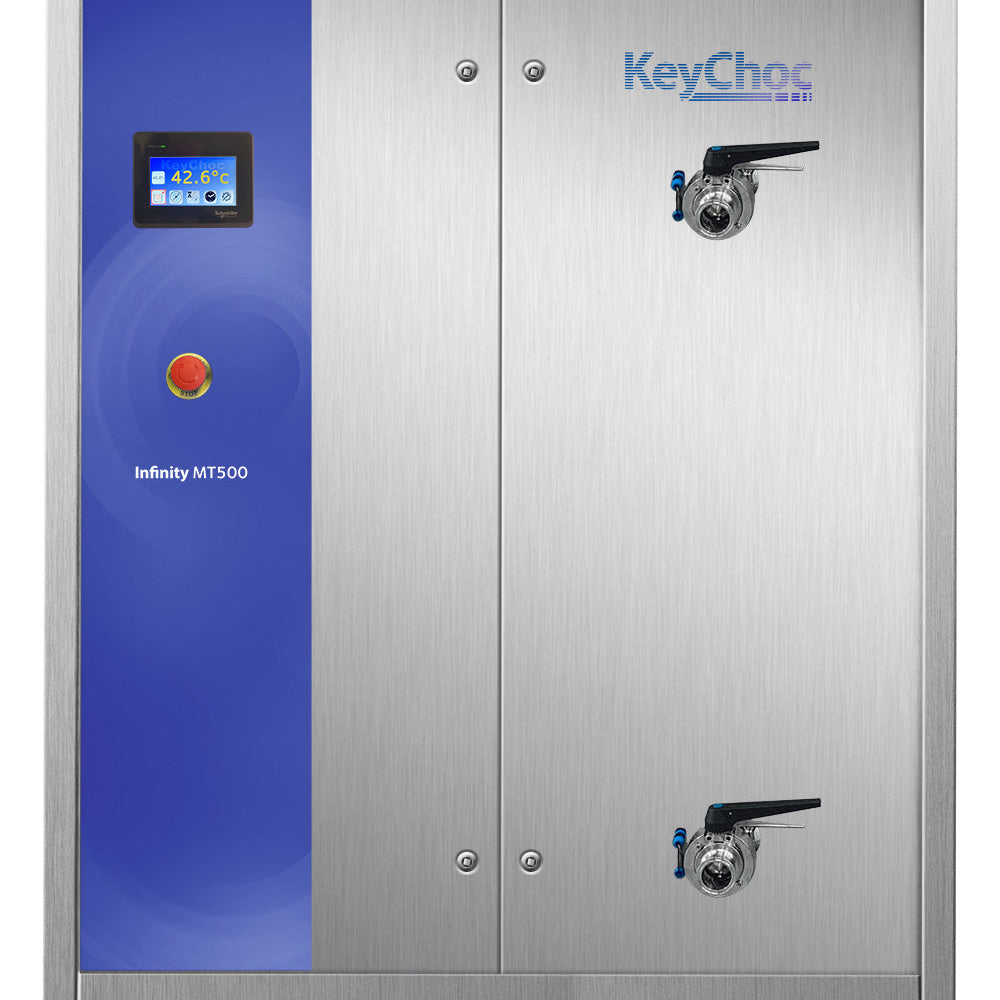

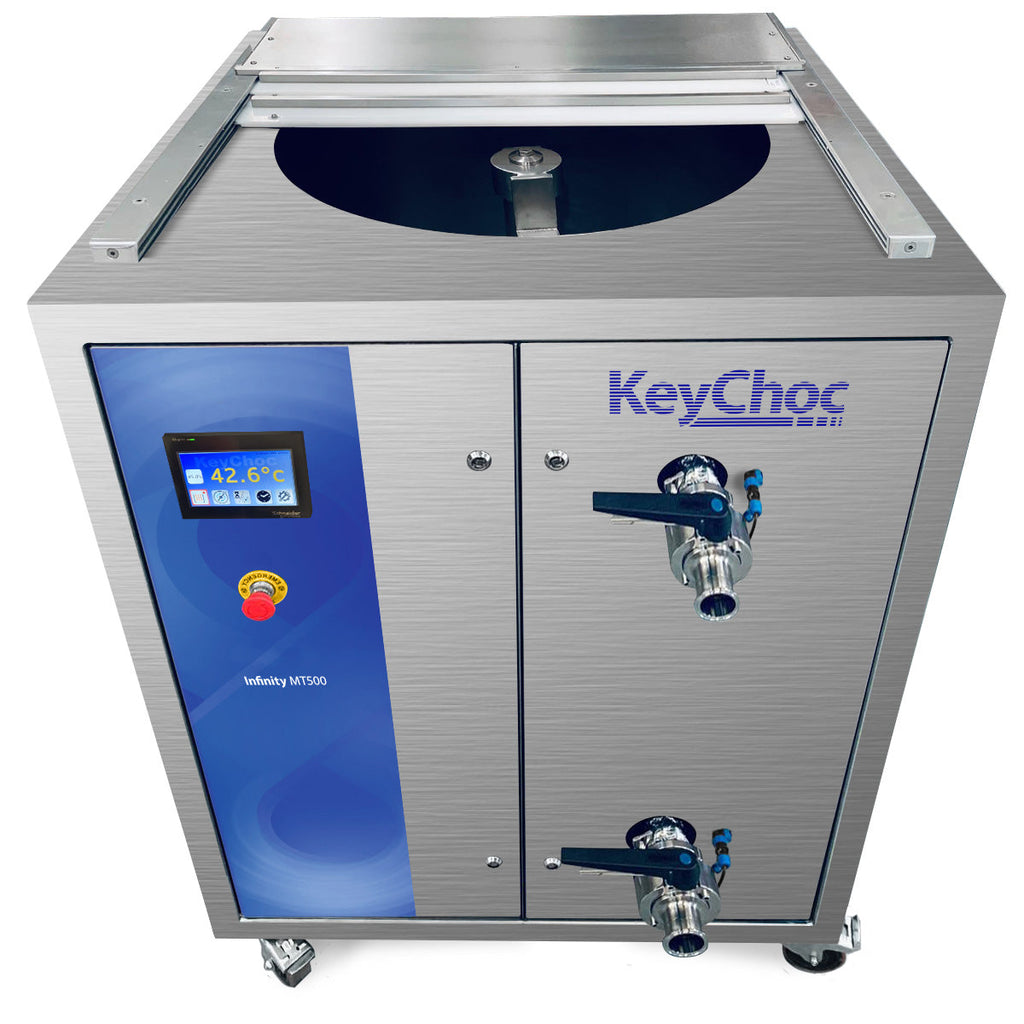

The Infinity MT500-P chocolate melting tank is a temperature-controlled, fully jacketed, melting tank with a 500kg capacity and an onboard pump for easy discharge.
Ideal for a wide variety of food products including everything from chocolate and other fat-based masses to wax.
- Tank Capacity: 500 Kgs (1100 lbs)
- On-board, auger-driven pump and separate, heated, high-level discharge valve
- Sturdy, stable construction on strong castors and designed to be easily lifted by forklift.
- All stainless steel construction; contact parts 304 S/S and frame from 303 S/S

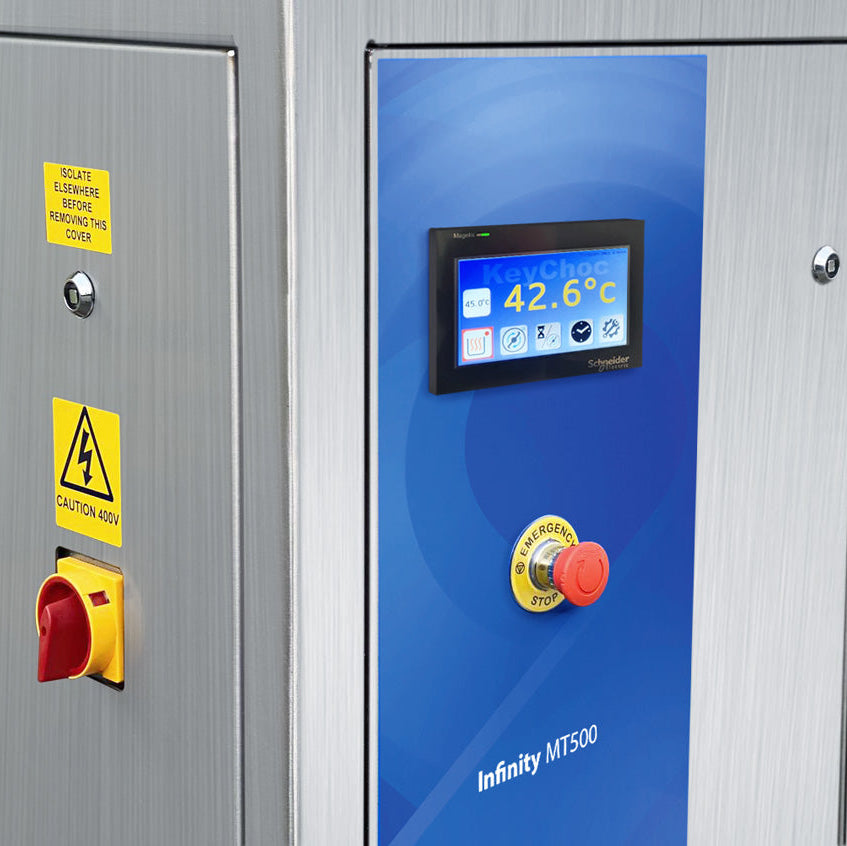

- PLC-driven with full touchscreen controls
- Digital thermostatic temperature control
- Sliding lid enabling excellent access to inside of tank and easy removal of the stirrer for cleaning
- Electrical safety cut-out fitted to lid
- Gate-type agitator
- Non-immersion tube heaters for ease of maintenance
- 50mm heated butterfly discharge valve, located approx. 400mm above ground level
- Bottom-mounted motor for better hygiene
- Dimensions: (W) 1150 x (D) 1150 x (H) 1370 mm
- Power: 3 Phase Supply Required, 380-460V, 16A, 50-60Hz
- Heating: 2 x 2.2 kW heaters
- Stirrer Motor: 1.1 kW
- Auger Motor: 0.25 kW
Here are just some of the features and advantages of Keychoc Melting Tanks:
Design Features
- Sturdy, stable, heavy-duty construction suitable for industrial use
- All stainless steel construction; contact parts 304 S/S and frame from 303 S/S
- Special design, shatterproof castors with no ‘flat spotting’
- 50mm, heated butterfly discharge valve, located approx. 400mm above ground level
- Bottom-mounted motor for better hygiene
- Gate-type agitator
For Ease of Operation
- PLC-driven with full, simple, intuitive touchscreen control
- Fitted with an onboard, auger-driven pump and a separate, heated, high-level discharge spout.
- Simple snap-in connection for filling the water jacket
- Sliding lid enabling excellent access from above to the inside of the tank and easy removal of the stirrer for cleaning
- Eco mode for the stirrer, which enables it to be run intermittently to save energy costs
- 7 day programmable start timer
For Ease of Maintenance
- Easy key access to all sides of the tank housing for maintenance
- Non-immersion heaters means there’s no need to drain the water jacket to remove the heaters for maintenance
- Electrical controls by Schneider, which are easily available from local suppliers worldwide
- Designed to be conveniently lifted by forklift.
All INFINITY Series machines, including the new INFINITY MT Series melting tanks are designed and manufactured in the UK.
