Description

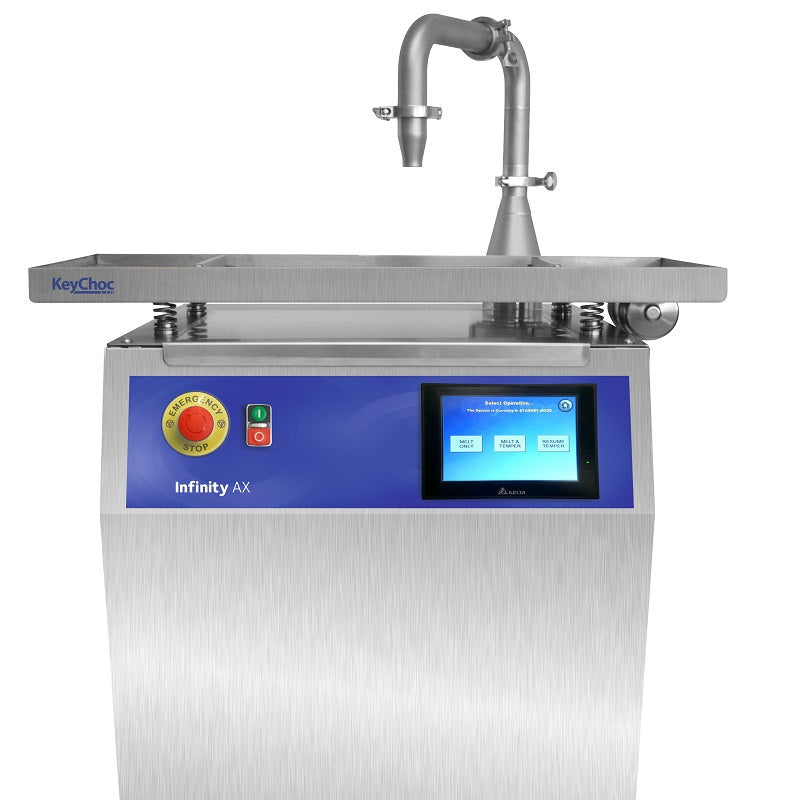

The INFINITY AX is a fully automatic, full-featured, continuous chocolate tempering machine, capable of tempering up to 200kgs/hr. You can use the AX to temper batches of chocolate from 12kgs up to 60kgs, even though it is only about the same size as a typical 24kg machine. It’s unequalled flexibility, ease of control and versatility make it the only chocolate tempering machine you’ll ever need.
The INFINITY AX is fully compatible with the INFINITY AML (automatic moulding line), as is the INFINITY MX.
CHOCOLATE TEMPERING TIMES (from 42˚c)
- 12kg batch – 10 mins (usable chocolate 9kgs)
- 20kg batch – 15 mins (usable chocolate 17kgs)
- 40kg batch – 18 mins (usable chocolate 37kgs)
- 60kg batch – 22 mins (usable chocolate 57kgs)
All times are based on tests conducted with an ambient temperature of 19˚c.
OPERATING CHARACTERISTICS
- Minimum batch size 12kgs
- Tank capacity 60kgs
- Maximum hourly production rate of 200kg/hr of tempered chocolate
- Use down to 3kgs of tempered chocolate
- Flow rate of up to 600 kgs/hour
- Designed to work with inclusions up to 10mm
- Intuitive, touchscreen operation
- Full PLC control
- Foot-pedal operated manual dosing
- Automatic programmable dosing (up to 999 deposits)
- Programmable start timer
- Adjustable flow control
- Maximum recommended environment temperature is 22˚c

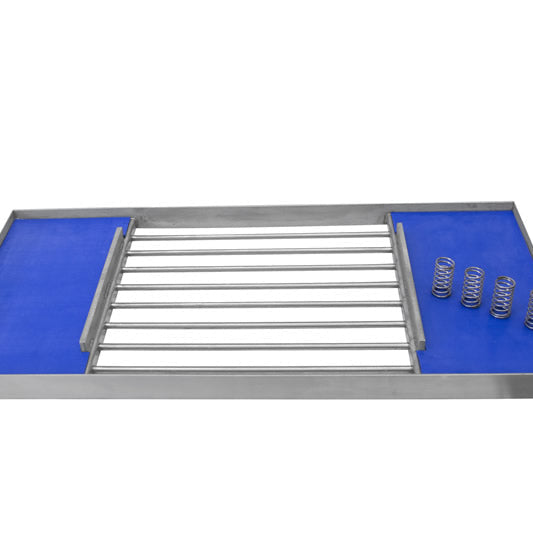

- Optional vibrating table (heated or unheated)

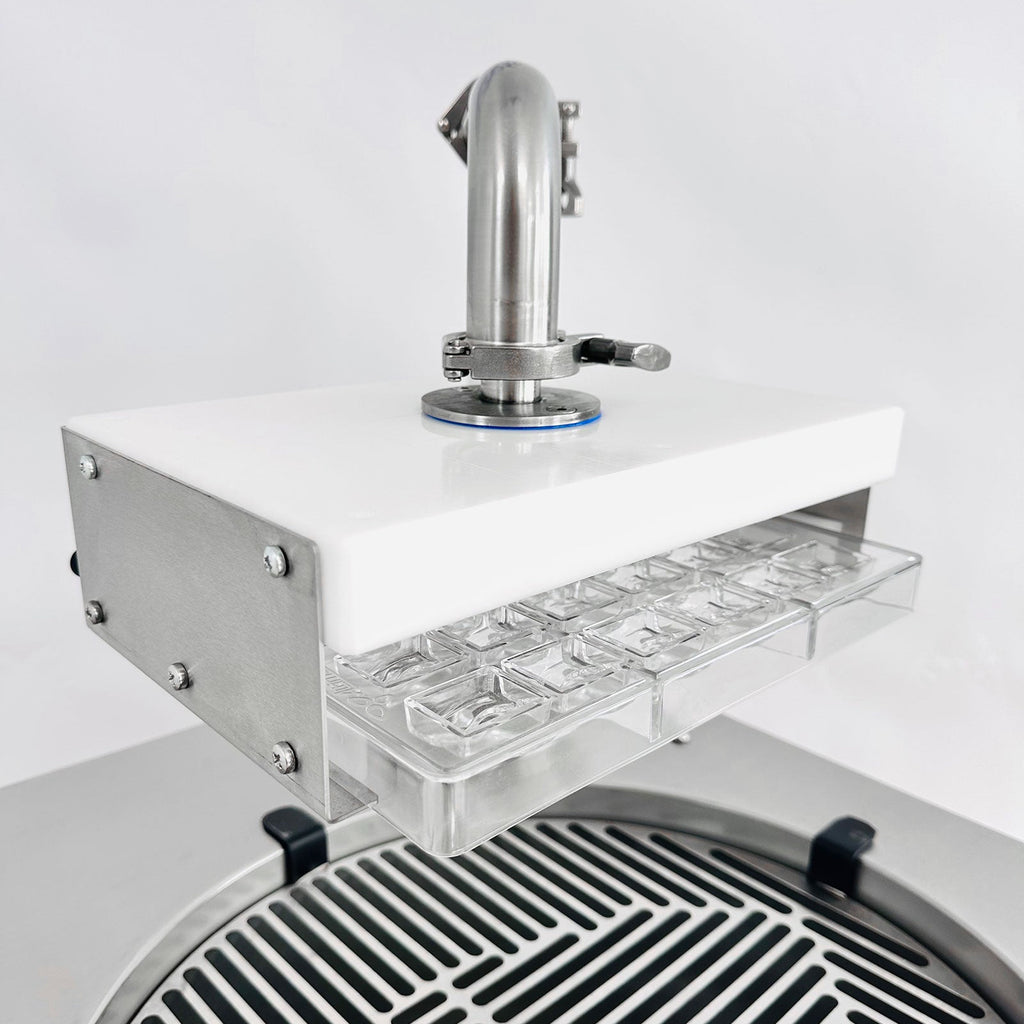

- Optional INFINITY depositing head
- Compatible with INFINITY AML automatic moulding line
DESIGN & CONSTRUCTION
- Removable auger
- Supplied with foot pedal
- Automatic pump reverse to empty auger tube and outlet pipe

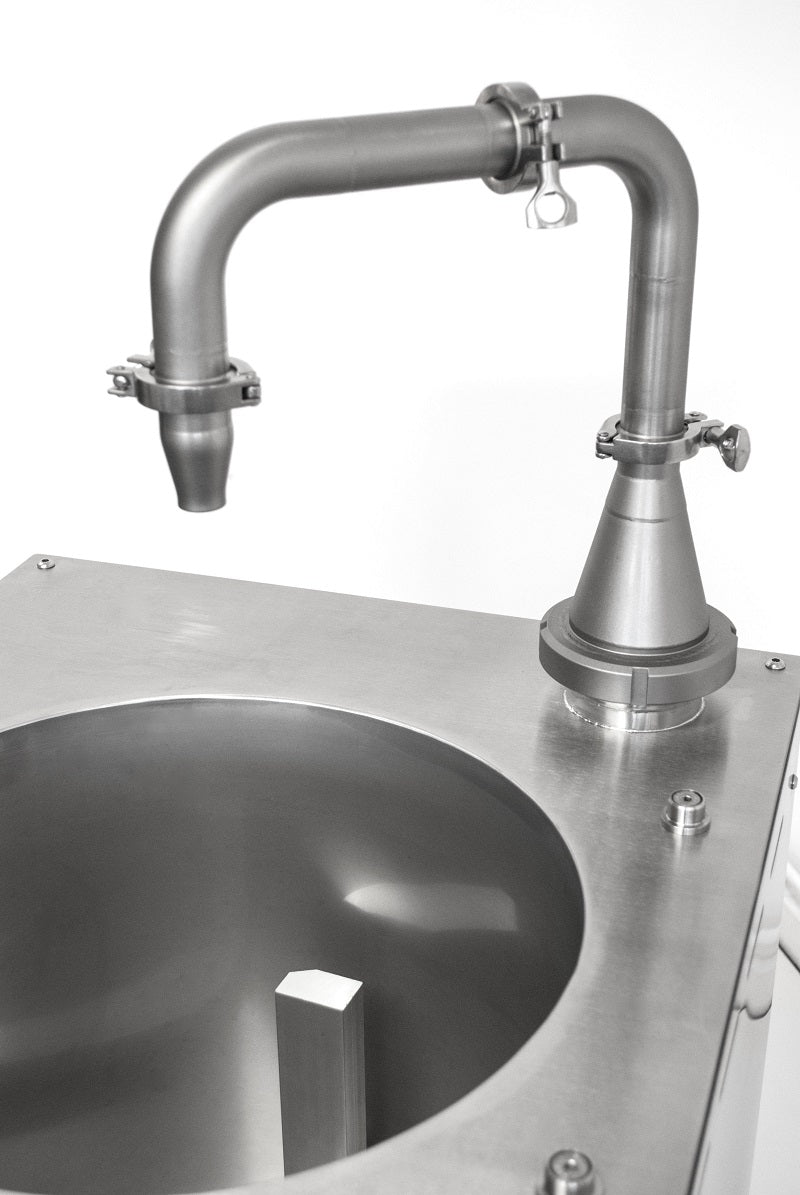

- Outlet pipe can be swivelled to fill large moulds alongside machine
- Cover for night mode to prevent contamination
- Lockable castors for ease of moving
- High precision temperature probes to give control to 0.1˚c
- Electronic contact heaters for precise, responsive control
- Fully insulated tank for energy efficiency
- Gas cooling (R1270 for UK/EU, R452a for USA/rest of world)
- All contact parts made from stainless steel 304 (except auger)
- Single phase supply, 13 Amp, 208-240V, 50/60Hz (please note minimum RCD rating in the Technical Specifications section)
CLEANING
The INFINITY AX is fitted with a removable auger and a very convenient drain outlet at the rear of the machine. The auger is easily removed from the top of the machine, allowing any remaining chocolate to be shaken off directly into the tank with no mess. Fully cleaning the machine can be completed in just 15-20 minutes (excluding drying time).

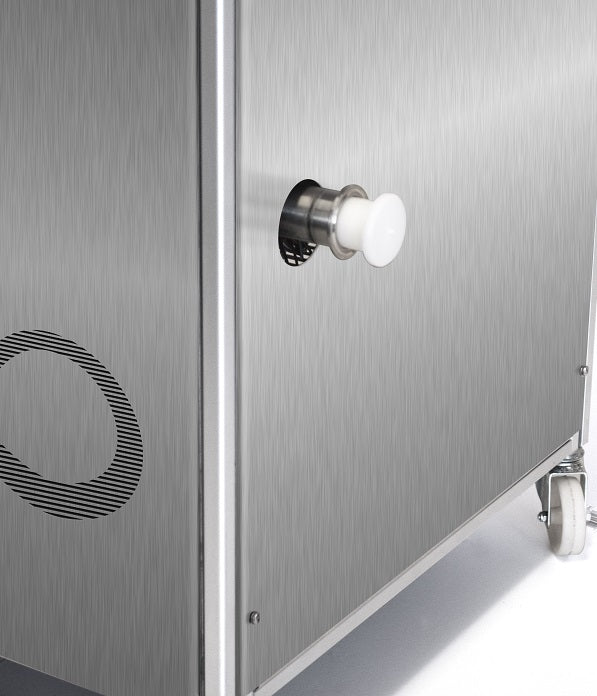

- Low-level drain to efficiently empty tank and clean pipes

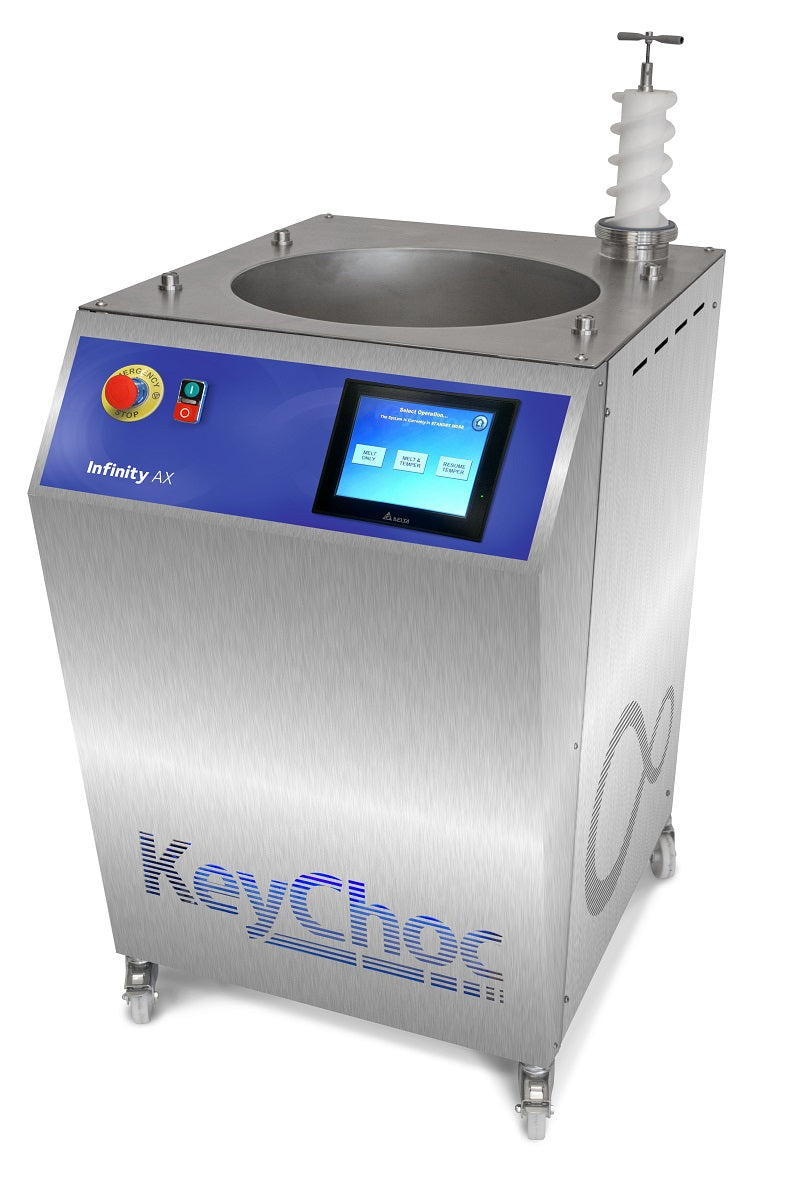

- Auger can be easily removed directly above tank to avoid mess
- Outlet pipe can be removed and dismantled for easy cleaning
Our cleaning video features an Infinity BX, but the cleaning process for the AX is exactly the same.
WORKING WITH NON-STANDARD CHOCOLATES
Bean-to-bar, craft, dairy-free, low-sugar and added protein are just some examples of growing trends in the chocolate confectionery sector. But these ‘non-standard’ chocolate grades are often more difficult to work with than a typical Callebaut standard grade and not all tempering machines can cope with the challenges they present! However the Infinity AX can, due entirely to the ability to modify the operating parameters of the machine in order to adapt it to a particular chocolate.
Note that if you are using standard chocolate grades, the AX will work without the need for any adjustments. Just set the right working temperature and you’ll have perfectly tempered chocolate, every time!
Our next generation INFINITY Series automatic tempering machines have been specifically designed to serve as the backbone of a versatile, modular chocolate production system and are manufactured in the UK.
