Description

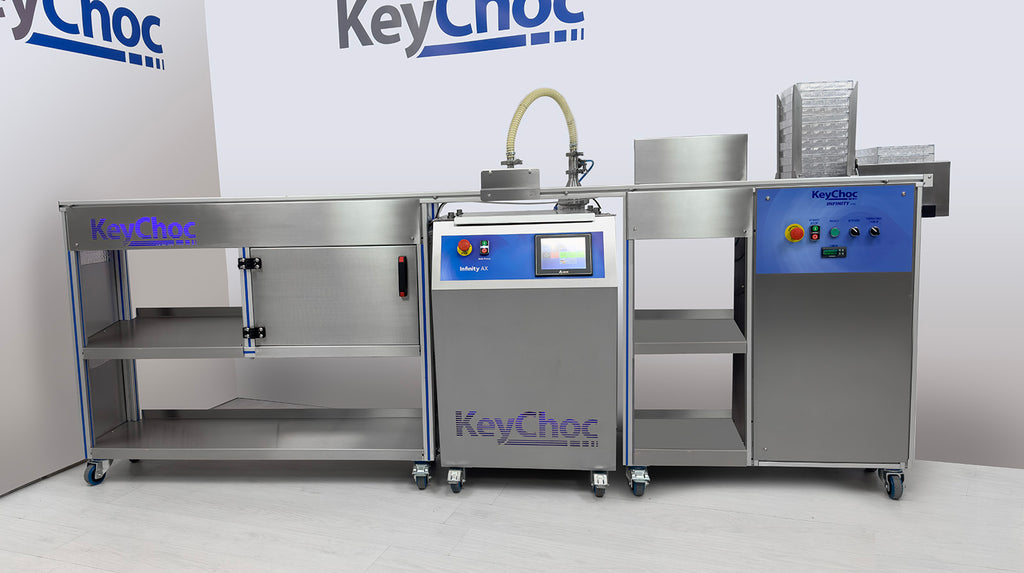

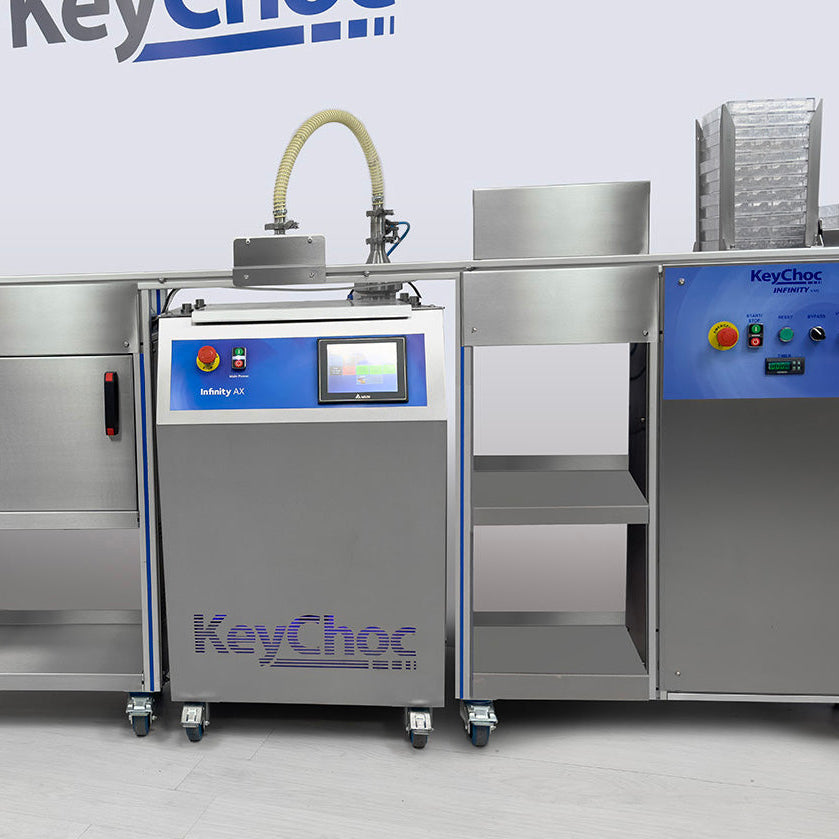

The INFINITY AML Automatic Solid Chocolate Moulding Line is designed to produce any solid chocolate moulded item using standard 275 x 175mm or 275 x 135mm polycarbonate chocolate moulds. It can deposit up to 100g per second with a maximum throughput rate of 900 moulds per hour.
The AML-2B is fitted with a heated cabinet to store the depositing head and a mould pre-heating station.
The INFINITY AML-2B is designed to work with either an INFINITY MX or AX tempering machine. It consists of five stations:
- Electrically driven mould feeding
- Infrared mould pre-heating

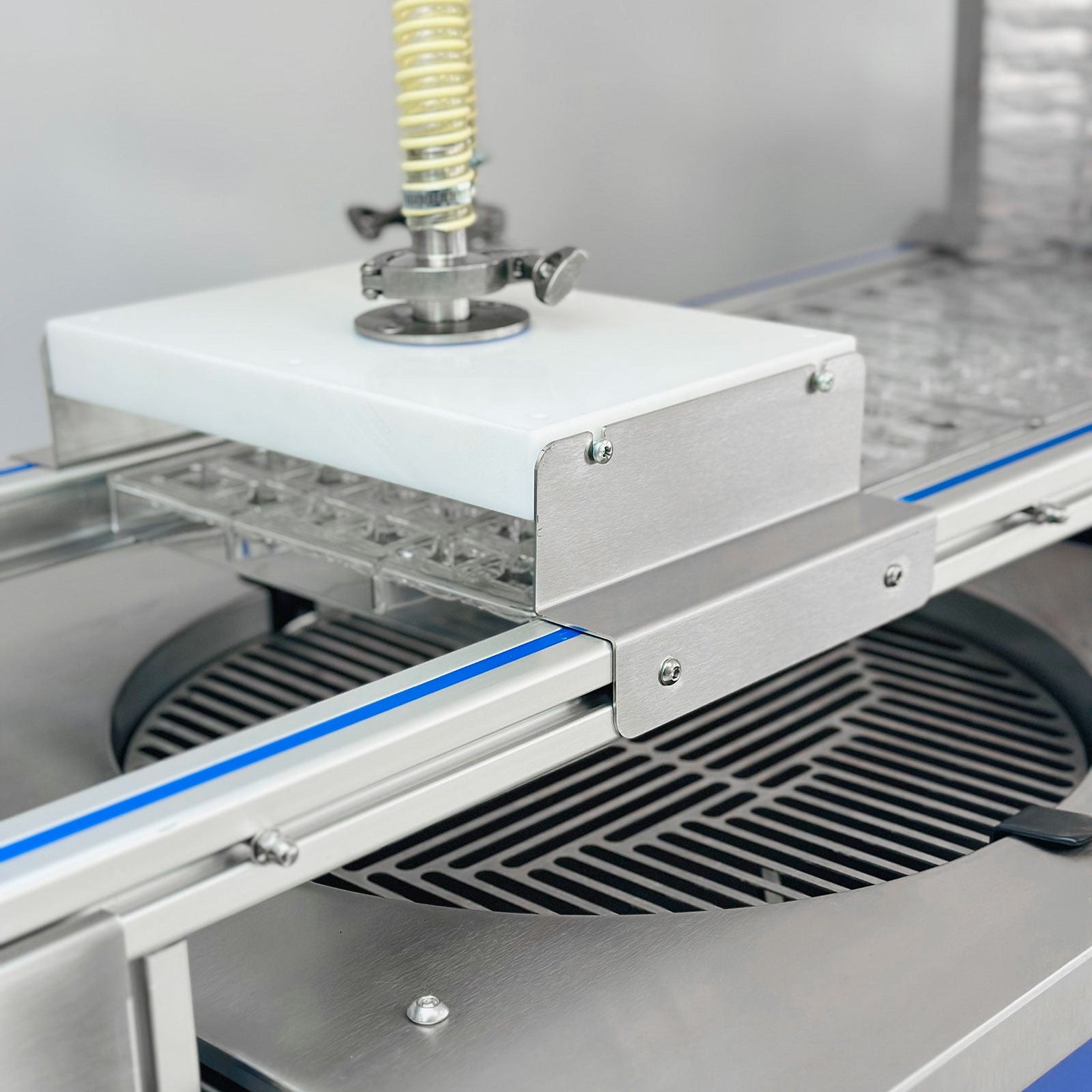

- Chocolate depositing
- Integrated vibrating station
- Manual decorating station
- Fitted heated cabinet to store depositing head
Dimensions: (L) 3100mm x (D) 400mm x (H) 1050mm
Moulds can then either run directly into a cooling tunnel or can be manually removed and placed in a cooling rack.
- The INFINITY AML is supplied with a depositing head and one depositing plate custom made to suit any mould specified by you.
- NO air supply is required as the mould-feeder is driven by an electric motor, not compressed air.
- Deposit timing is controlled by a built-in timer on the INFINITY AML.
- The vibrating station is built into the INFINITY AML so the optional INFINITY MX/AX vibrating table is NOT required.
Do You Make Flavoured Chocolate Bars?
If you regularly make chocolate bars in many different flavours – whether it is different origin chocolates, flavoured chocolates or even just dark, milk and white – an INFINITY AML teamed with 3, 4 or even more INFINITY MX/AX tempering machines could be a highly versatile and surprisingly cost-effective solution for your business needs. As the AX/MX machines can each be “wheeled in” and “wheeled out” as you need, you can keep your moulding line going all day producing at the rate of up to 200kgs/hr, or until you run out of moulds!
